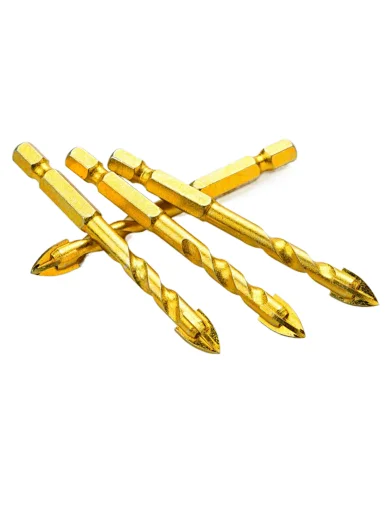

Porcelain drill bits
Φ3-Φ16mm
Carbide Drill bits are drilling holes on the porcelain,ceramic,marbel,millor etc,with water colded,can drill 8holes at least.
Quantity
Procelain Drill bits
The Drill bits are drilling holes on the porcelain,ceramic,marbel,millor etc,with water colded,can drill 8holes at least.

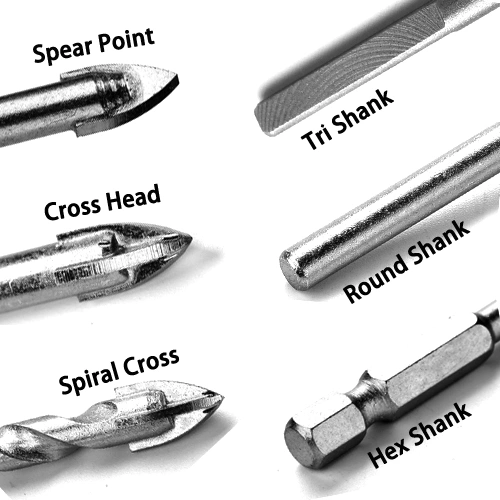

Different Types can be choose.
Application and Use infrom:

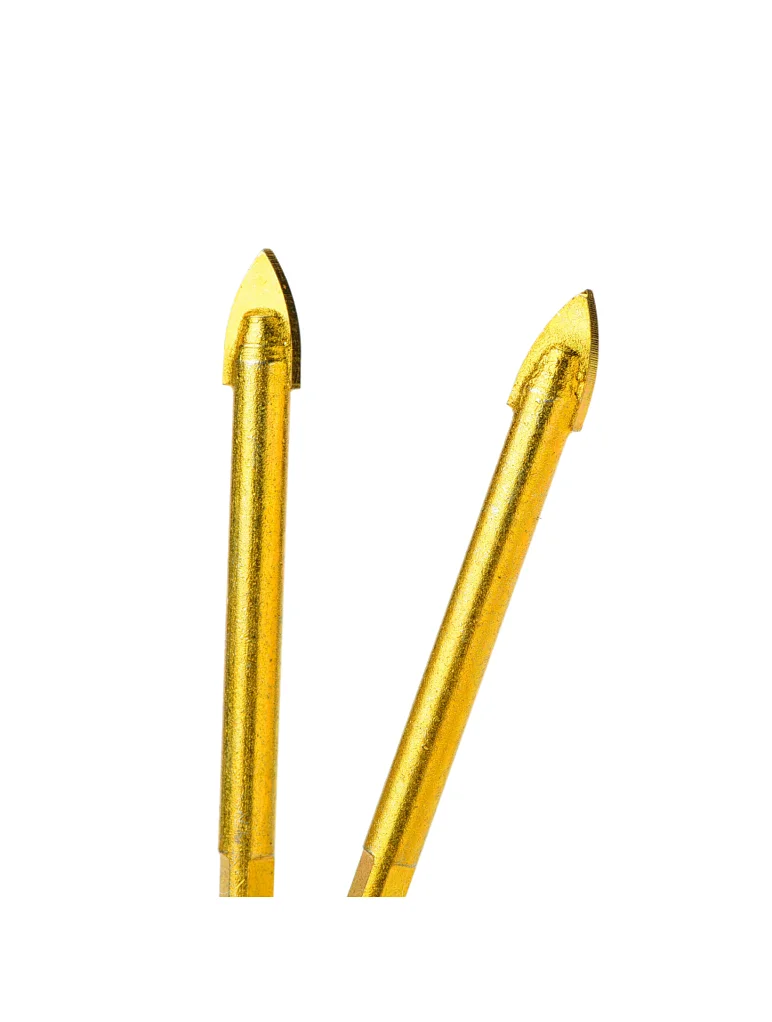

Top:with tungsten carbide
Shank: 45#steel
good weld and finish
| diameter(mm) | Diameter(Inch) | Length(mm) |
|---|---|---|
| 3 | 1/8" | 60 |
| 4 | 5/32" | 64 |
| 5 | 3/16" | 66 |
| 6 | 1/4" | 71 |
| 8 | 5/16" | 77 |
| 10 | 3/8" | 79 |
| 12 | 1/2" | 85 |
Different Types can be choose.
Application and Use infrom:
| Use Instruction:使用说明 | |||||

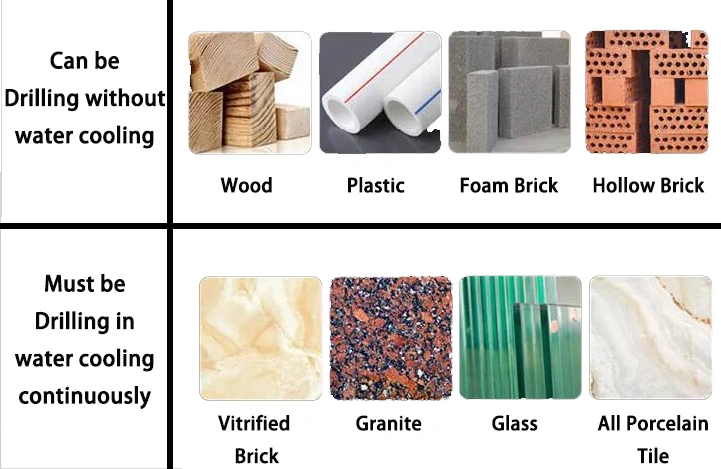

| 产品需要在手电钻上使用，钻孔时需先定位再启动机器，使用过程中需要连续加水冷却，6-8mm规格，转速为2300-2700/S，10-12mm，转速为2000-2200/S。钻孔时用力应均匀，使用过程中要注意佩戴防护用具，确保安全生产。 It needs be used on a hand electric drill. When drilling, to be positioned before starting the machine. Also needs to be continuously cooled by adding water during drilling. The size of 6-8mm, with drilling speed 2300-2700/S; for 10-12mm, the speed need 2000-2200/S. The drilling force should be even ,and wear protective equipment to ensure safe production. | |||||
| 图片 Picture | 牌号 Grade | 产品名称 Type | 适用范围 Application | ||
| NF108X | 三角钻 Glass Drill | 可广泛适用于瓷砖、玻璃、墙壁、大理石、部分金属等等材料的钻孔加工 It can be widely used in the drilling of tile ,glass,wall,marble,some metal etc | ||
| NF106X | 霸王钻 Multi-Function Drill | 可广泛适用于三角铁、槽钢、汽车钢板、弹簧钢等硬度小于38度的各种金属、混凝土、砖墙、塑料、木材等等材料的钻孔加工。 It can be widely used in the drilling of triangle iron, channel steel, automobile steel plate, spring steel and other materials with hardness less than 38°, such as metal, concrete, brick wall, plastic, wood, etc. | ||
