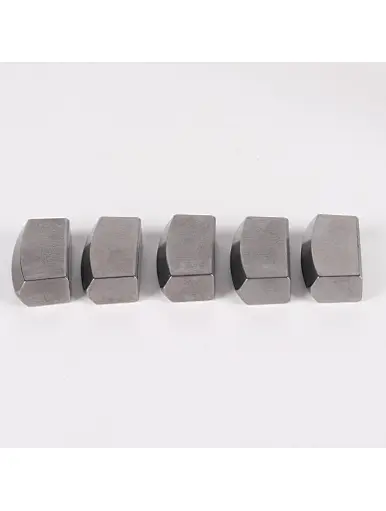

Carbide Mining Bits
K0 Series
Mainly used in mining, tunnel excavation. Engineering construction projects and other fields.Easy brazed ,low production cost.high Wear resistance
Quantity

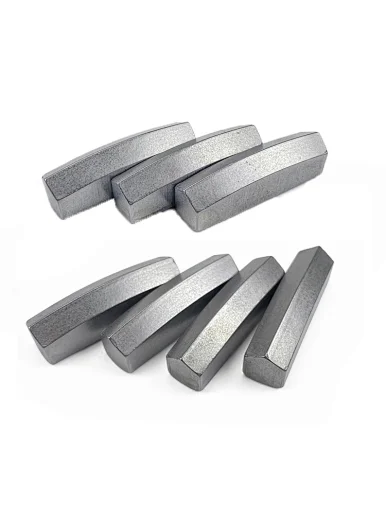

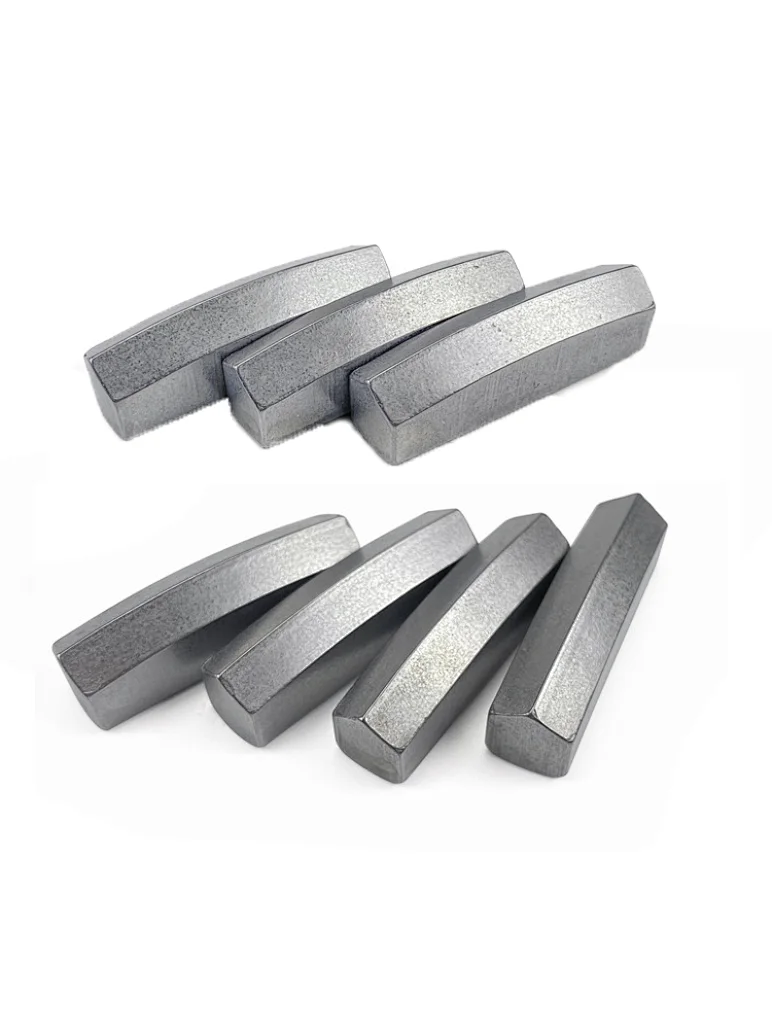

Carbide Mining Bits
Made by YG11C or YG15C cemented carbide,brazed on the drill body,Mainly used in mining, tunnel excavation. Engineering construction projects and other fields.Easy brazed ,low production cost.high Wear resistance
Made by YG11C or YG15C cemented carbide,brazed on the drill body,Mainly used in mining, tunnel excavation. Engineering construction projects and other fields.Easy brazed ,low production cost.high Wear resistance

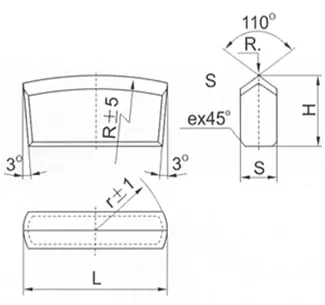

| K0 Series For making chisel cemented carbide drill bits |
| Type | Dimension | ||||||||
| L | H | S | R | r | r1 | ||||
| 基本尺寸 | 允许偏差 | 基本尺寸 | 允许偏差 | 基本尺寸 | 允许偏差 | ||||
| Dim | Tol. | Dim | Tol. | Dim | Tol. | ||||
| K026D | 26 | ±0.6 | 12 | ±0.5 | 8 | 0-0.6 | 50 | 13 | 0.5-1.0 |
| K026B | 26 | 15 | 8 | 50 | 13 | ||||
| K026 | 26 | 18 | 8 | 180 | 13 | ||||
| K028D | 28 | 12 | 8 | 80 | 14 | ||||
| K028B | 28 | 15 | 8 | 80 | 14 | ||||
| K028 | 28 | 18 | 8 | 180 | 14 | ||||
| K030D | 30 | 13 | 8 | 80 | 15 | ||||
| K030D | 30 | 15 | 8 | 80 | 15 | ||||
| K030 | 30 | 18 | 8 | 180 | 15 | ||||
| K032E | 3 | 12 | 8 | 80 | 16 | ||||
| K032D1 | 32 | 12.5 | 8 | 180 | 16 | ||||
| K032D | 32 | 13 | 8 | 80 | 16 | ||||
| K032B | 32 | 15 | 8 | 180 | 16 | ||||
| K032 | 32 | 18 | 8 | 180 | 16 | ||||
| K034E | 34 | 12 | 8 | 80 | 17 | ||||
| K034D | 34 | 13 | 8 | 80 | 17 | ||||
| K034B | 34 | 15 | 10 | 180 | 17 | ||||
| K034 | 34 | 18 | 10 | 180 | 17 | ||||
| K036E | 36 | 12.5 | 8 | 120 | 18 | ||||
| K036D | 36 | 13.5 | 9.2 | 80 | 18 | ||||
| K036A | 36 | 15 | 8 | 80 | 18 | ||||
| K036B | 36 | 15 | 10 | 180 | 18 | ||||
| K036 | 36 | 18 | 10 | 180 | 18 | ||||
| K038H | 38 | ±0.7 | 12 | ±0.5 | 10 | 180 | 19 | ||
| K038E | 38 | 13 | 9 | 180 | 19 | ||||
| K038D1 | 38 | 13.5 | 8 | 180 | 19 | ||||
| K038D | 38 | 13.5 | 9.2 | 120 | 19 | ||||
| K038D2 | 38 | 13.5 | 9.2 | 180 | 19 | ||||
| K038A | 38 | 15 | 8 | 120 | 19 | ||||
| K038B | 38 | 15 | 10 | 180 | 19 | ||||
| K038 | 38 | 18 | 10 | 180 | 19 | ||||
| K040H | 40 | 12 | 10 | 180 | 20 | ||||
| K040D | 40 | 13.5 | 9.2 | 120 | 20 | ||||
| K040D1 | 40 | 13.5 | 9.2 | 180 | 20 | ||||
| K040F | 40 | 14 | 9 | 120 | 20 | ||||
| K040A | 40 | 15 | 8 | 120 | 20 | ||||
| K040B | 40 | 15 | 10 | 180 | 20 | ||||
| K040 | 40 | 18 | 10 | 180 | 20 | ||||
| K042E | 42 | 12 | 7 | 150 | 21 | ||||
| K042H | 42 | 12 | 10 | 180 | 21 | ||||
| K042D | 42 | 13.5 | 9.2 | 120 | 21 | ||||
| K042D1 | 42 | 13.5 | 9.2 | 180 | 21 | ||||
| K042B1 | 42 | 14 | 10 | 180 | 21 | ||||
| K042B | 42 | 15 | 10 | 180 | 21 | ||||
| K042A | 42 | 17 | 9 | 120 | 20 | ||||
| K042 | 42 | 18 | 10 | 180 | 21 | ||||
| K043H | 43 | 12 | 10 | 180 | 21.5 | ||||
| K043D | 43 | 13.5 | 9.2 | 120 | 21.5 | ||||
| K043A | 43 | 15 | 8 | 120 | 21.5 | ||||
| K043B | 43 | 15 | 10 | 180 | 21.5 | ||||
| K044B | 44 | 15 | 10 | 120 | 22 | ||||
| K044 | 44 | 18 | 10 | 180 | 22 | ||||
| K046B | 46 | 15 | 10 | 160 | 23 | ||||
| K046 | 46 | 18 | 10 | 180 | 23 | ||||
| K049B | 49 | 15 | 10 | 160 | 24.5 | ||||
| K049 | 49 | 18 | 10 | 1800 | 24.5 | ||||
