Carbide Mining Bits
K10 Series
Mining Bits Mainly used in mining, tunnel excavation. Engineering construction projects and other fields.Easy brazed ,low production cost.high Wear resistance
Quantity

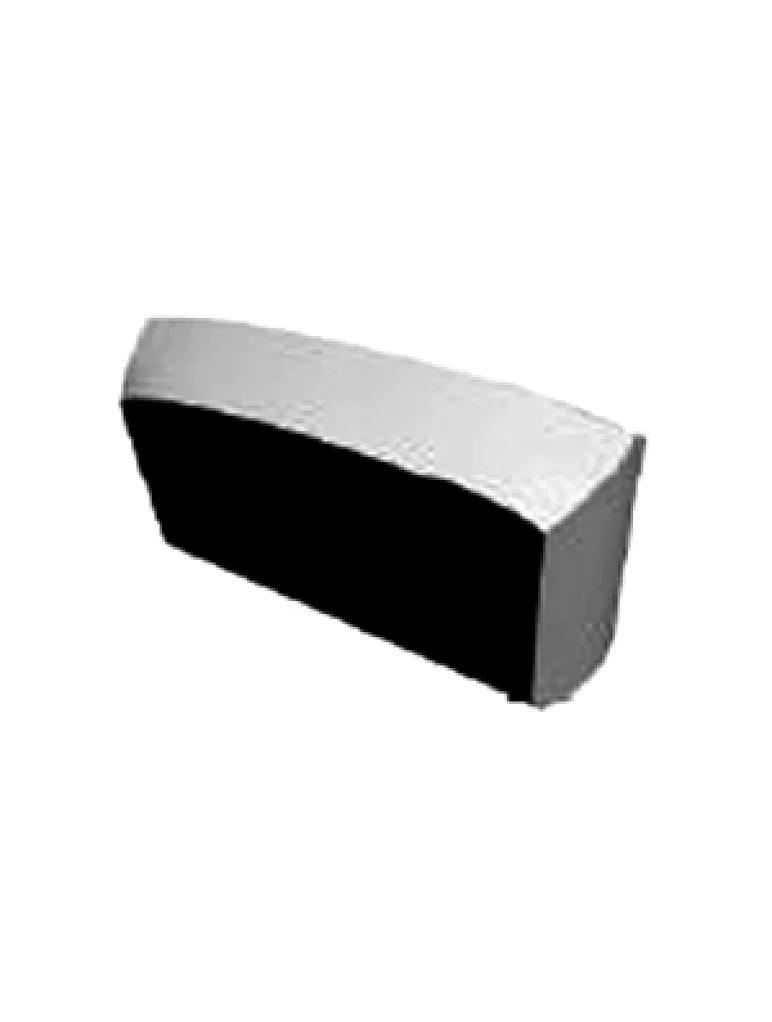

Carbide Mining Bits
Made by YG11C or YG15C cemented carbide,brazed on the drill body.
carbide drill tips K10 series Mainly used in mining, tunnel excavation,Engineering construction projects and other fields.Easy brazed ,low production cost.high Wear resistance.
K10 Series For making chisel cemented carbide drill bits |

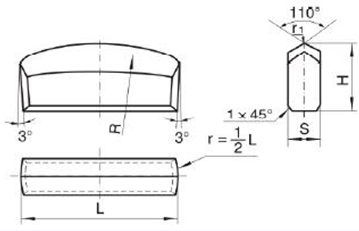

| Type | Dimension | ||||||||
| L | H | S | R | r | r1 | ||||
| 基本尺寸 | 允许偏差 | 基本尺寸 | 允许偏差 | 基本尺寸 | 允许偏差 | ||||
| Dim | Tol. | Dim | Tol. | Dim | Tol. | ||||
| K1013 | 13 | ±0.4 | 10 | ±0.25 | 4 | ±0.15 | 40 | 8 | 0.5-1.0 |
| K1016A | 16 | ±0.4 | 12 | ±0.25 | 5 | ±0.15 | 30 | 8 | |
| K1016 | 16 | ±0.4 | 12 | ±0.35 | 6 | ±0.25 | 30 | 8 | |
| K1020B | 20 | ±0.4 | 11.5 | ±0.35 | 6 | ±0.25 | 70 | 10 | |
| K1020A | 20 | ±0.4 | 12 | ±0.35 | 5 | ±0.25 | 40 | 10 | |
| K1020 | 20 | ±0.4 | 12 | ±0.35 | 6 | ±0.25 | 40 | 10 | |
| K1026 | 26 | ±0.4 | 12 | ±0.35 | 6 | ±0.25 | 50 | 13 | |
| K1030 | 30 | ±0.45 | 15 | ±0.35 | 8 | ±0.25 | 80 | 15 | |
| K1032 | 32 | ±0.45 | 15 | ±0.35 | 8 | ±0.25 | 80 | 16 | |
| K1034 | 34 | ±0.45 | 15 | ±0.35 | 8 | ±0.25 | 80 | 17 | |
| K1036 | 36 | ±0.5 | 15 | ±0.35 | 8 | ±0.25 | 80 | 18 | |
| K1036A | 36 | ±0.5 | 15 | ±0.35 | 10 | ±0.25 | 120 | 18 | |
| K1038 | 38 | ±0.5 | 15 | ±0.35 | 8 | ±0.25 | 120 | 19 | |
| K1038A | 38 | ±0.5 | 15 | ±0.35 | 10 | ±0.25 | 120 | 19 | |
| K1040 | 40 | ±0.5 | 15 | ±0.35 | 8 | ±0.25 | 120 | 20 | |
| K1040A | 40 | ±0.5 | 15 | ±0.35 | 10 | ±0.25 | 120 | 20 | |
| K1040B | 40 | ±0.5 | 18 | ±0.35 | 10 | ±0.25 | 12 | 20 | |
| K1043 | 43 | ±0.5 | 15 | ±0.35 | 10 | ±0.25 | 120 | 21.5 | |
| K1043A | 43 | ±0.5 | 18 | ±0.35 | 8 | ±0.25 | 120 | 21.5 | |
| K1043B | 43 | ±0.5 | 18 | ±0.35 | 10 | ±0.25 | 120 | 21.5 | |
| K1046 | 46 | ±0.6 | 15 | ±0.35 | 10 | ±0.25 | 160 | 23 | |
| K1046A | 46 | ±0.6 | 18 | ±0.35 | 10 | ±0.25 | 160 | 23 | |
| K1049 | 49 | ±0.6 | 18 | ±0.35 | 10 | ±0.25 | 160 | 24.5 | |
| K1054 | 54 | ±0.6 | 18 | ±0.35 | 10 | ±0.25 | 160 | 27 | |
