Carbide Mining Bits
K30 Series
Mainly used in mining, tunnel excavation. Engineering construction projects and other fields.Easy brazed ,low production cost.high Wear resistance
Quantity

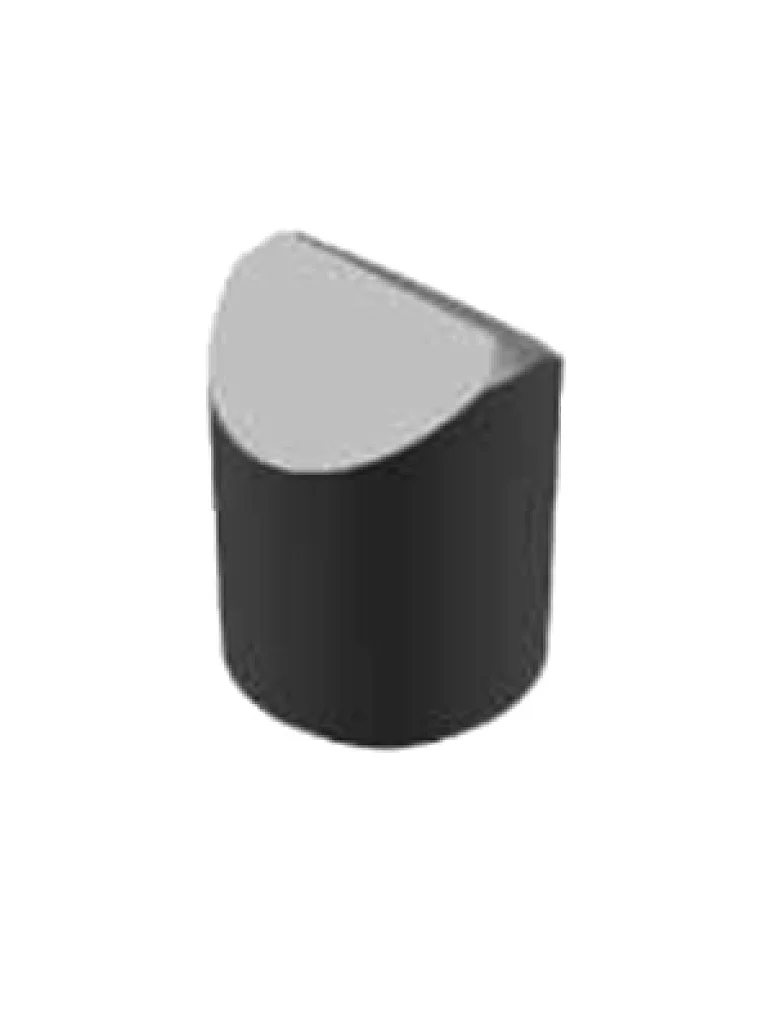

Carbide Mining Bits
Made by YG11C or YG15C cemented carbide,brazed on the drill body,Mainly used in mining, tunnel excavation. Engineering construction projects and other fields.Easy brazed ,low production cost.high Wear resistance

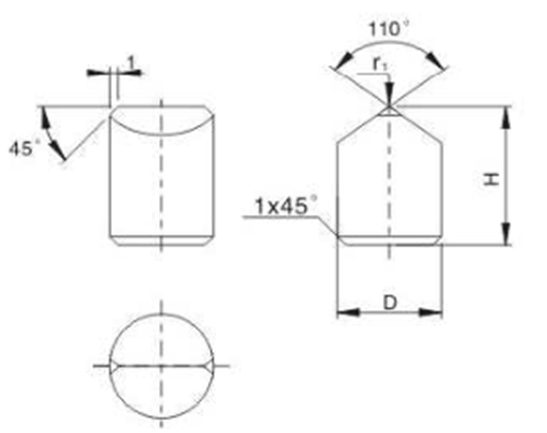

K30 Series For making cross cemented carbide drill bits |
| Type | Dimension | ||||
| D | H | r1 | |||
| 基本尺寸 | 允许偏差 | 基本尺寸 | 允许偏差 | ||
| Dim | Tol. | Dim | Tol. | ||
| K3008 | 8 | ±0.25 | 14 | ±0.35 | 0.5-1.0 |
| K3010 | 10 | ±0.25 | 16 | ±0.35 | |
| K3012 | 12 | ±0.35 | 16 | ±0.35 | |
| K3014 | 14 | ±0.35 | 18 | ±0.35 | |
| K3016 | 16 | ±0.35 | 20 | ±0.40 | |
| K3016A | 16 | ±0.35 | 22 | ±0.40 | |
| K3018 | 18 | ±0.35 | 20 | ±0.40 | |
